Fabrication
Our well-equipped metal fabrication department has the ability to complete tight-tolerance fabrication projects using a variety of materials
About our Fabrication Services
Northeast Machine’s fabrication shop is second to none in Northeast Nebraska. It is home to some of the most skilled fabricators in the area who are the best in the business and can help you with any project you might have. Our well-equipped metal fabrication department has the ability to complete tight-tolerance fabrication projects using a variety of materials. We possess all welding and fabrication equipment required for single-piece or production welding and fabrication. Just give us a call. We’ll be more than happy to help get your idea underway.

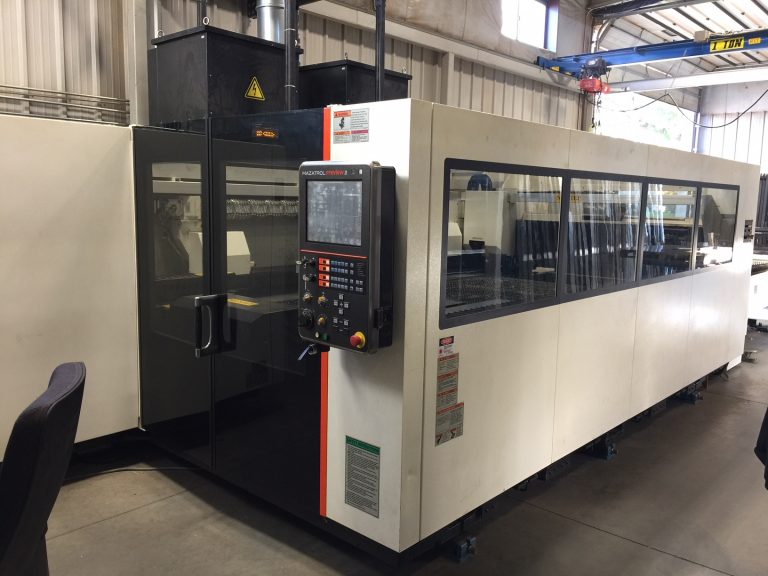

- Mazak Optiplex 3015 4KW Laser
5′ X 10′ Dual shuttling tables for maximum efficiency
24 ga – 1″ Carbon Steel
24 ga – 1/2″ Stainless Steel
.030″ – 3/8″ Aluminum
Mazatrol Preview 3 touch screen controller

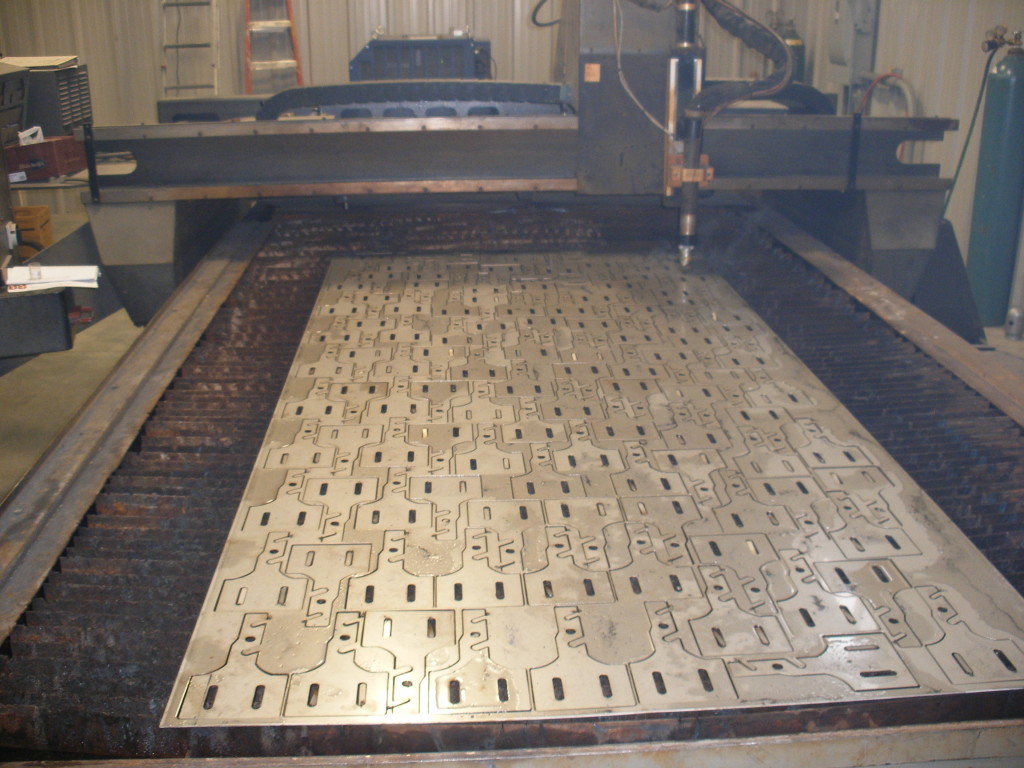

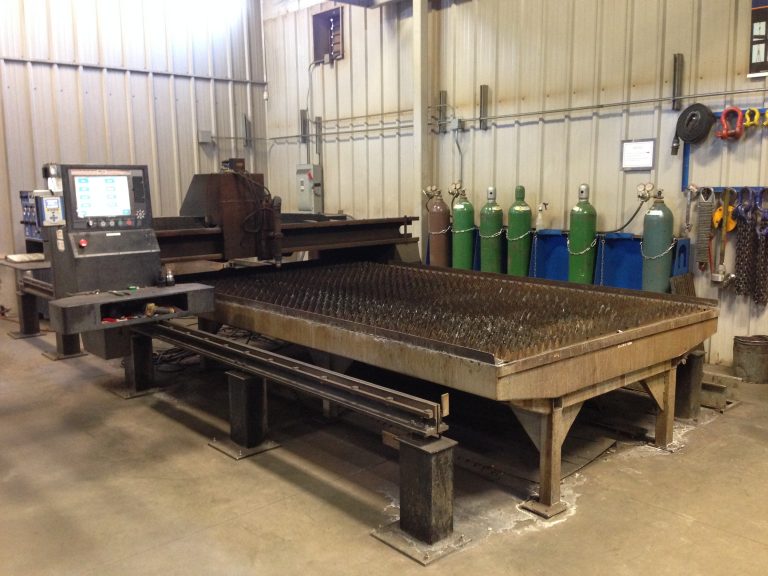

Pronest programming software for efficient programming times and material usage - CNC Plasma Table
6′ X 12′ Table
Easily cuts carbon steel, stainless steel, and aluminum sheet/plate
Uses a water mist technology on aluminum and stainless for superior cut quality
Ability to cut 20 GA sheet metal up to 2″ thick plate
Thermal Dynamics Ultracut 300 power supply
Burney touch screen controller
Pronest programming software for efficient programming times and material usage - Miller Robotic Welder
MR 2000 Miller Robotic arm
Arm has 48″ reach in all directions
Axcess 450 Amp power supply with ability to pulse
Capable of running up to 1/16″ diameter wire - Time saver series 2200 deburring machine
Automatically removes slag or dross from plasma cut parts
Can also be used to grain stainless sheets
Accepts up to 36″ wide parts - Accurpress Edge 175 Ton press brake
12′ long bed
5-Axis programmable back gauge

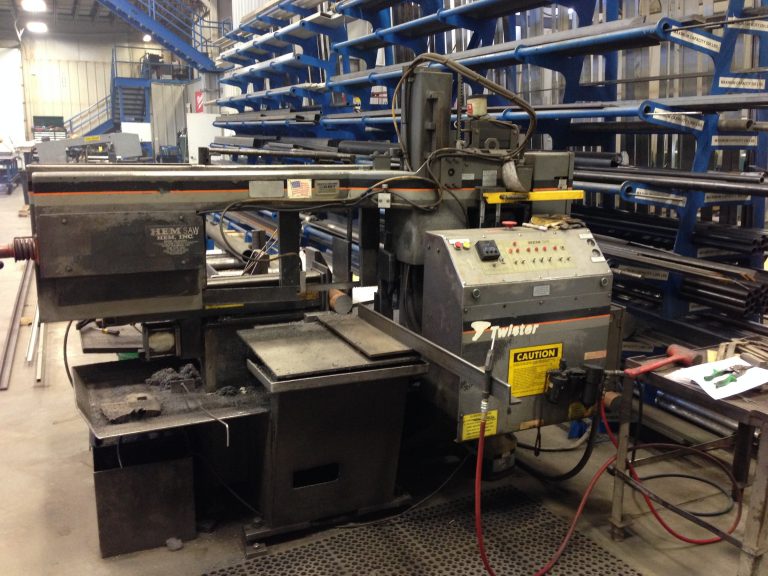

Ram depth repeatability of +/- .0004″ for accurately formed angles on parts - Twister Automatic HE&M horizontal band saw
Automatic shuttle vise
Ability to saw 20″ wide X 14″ tall parts

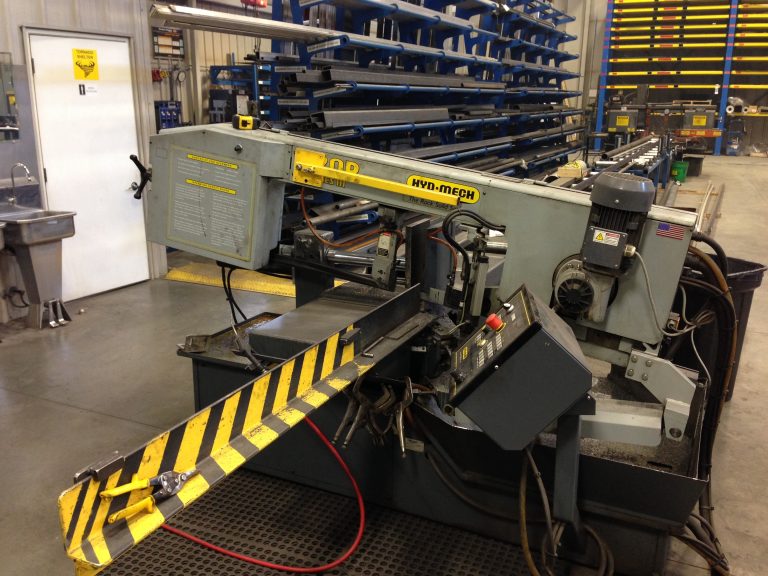

Ability to saw 40′ long material for better material usage - Hyd-Mech S20P Series 3 semi automatic horizontal band saw
Ability to saw 18″ wide X 13″ tall material

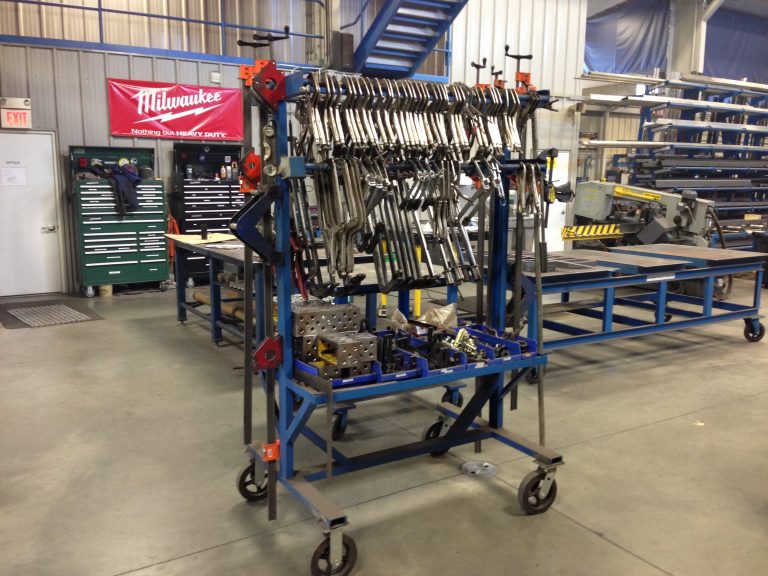

Ability to saw 40′ long material for better material usage - 2 Stronghand Tools BuildPro modular jigging tables
Modular jigging tables allow the fabricator to create jigging faster and more accurately for a production run than building a permanent jig that may end up only being used for one production run – in the end saving fabrication time and reducing cost to the customer. It can also be used to fixture custom one off parts accurately and efficiently - Miller welders
(1) XMT 450 amp MIG welder with 25′ boom
(1) XMT 304 amp MIG welder with 25′ boom
(4) 350 P pulsing MIG welders
(1) Dynasty 200DX pulsing TIG welder - Walter Surfox 104 weld cleaning system
For cleaning and passivation of stainless welds
Removes discoloration from welding and keeps weld from rusting - (2) 5 Ton wirelessly operated over head Shawbox cranes
Allows for ability to handle large fabrication projects safely and efficiently - Eagle Curvatrici Pipe and tube rolling machine with various sizes of dies

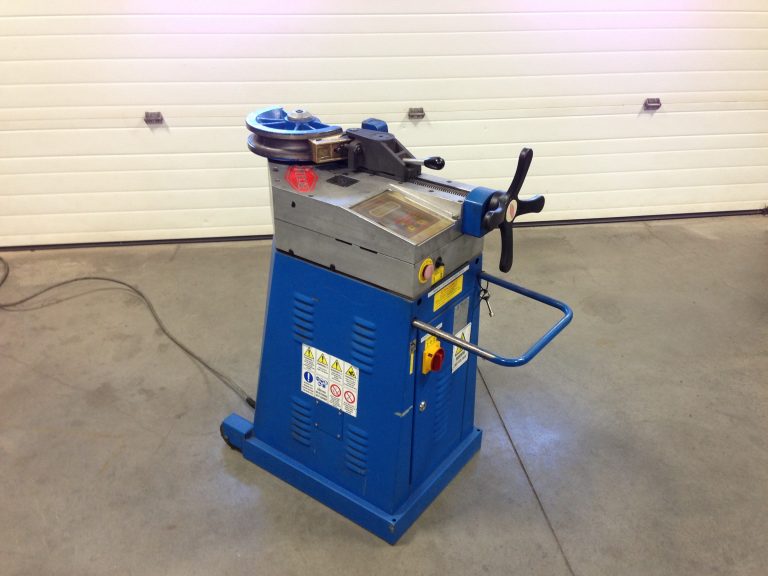

- Ercolina pipe and tube bending machine with various sizes of dies

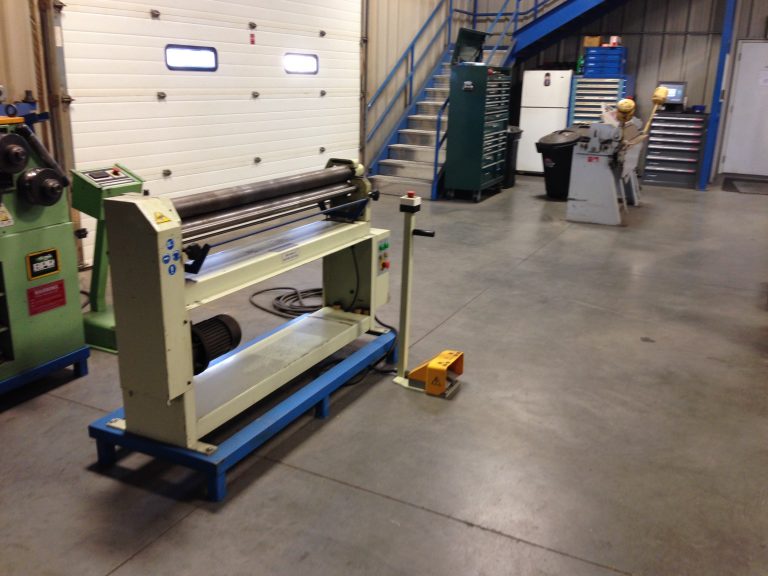

- Birmingham powered slip roller

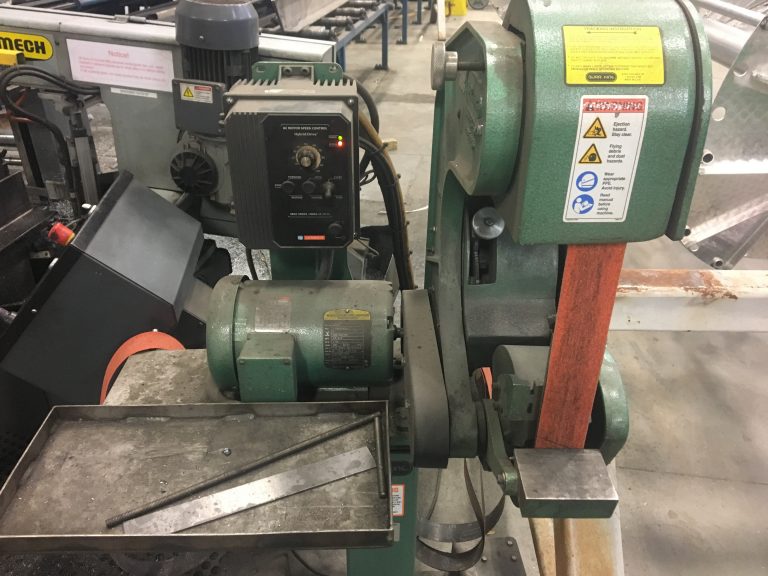

Ability to roll 50″ wide X 16 GA sheet - Slugger fish mouthing belt sander
Used for making angled fish mouth joints on handrail and roll cage tubeHome
- 5′ X 10′ Dual shuttling tables for maximum efficiency
- 24 ga – 1″ Carbon Steel
- 24 ga – 1/2″ Stainless Steel
- .030″ – 3/8″ Aluminum
- Mazatrol Preview 3 touch screen controller
- Pronest software for efficient programming times and material usage
- 6′ X 12′ Table
- Easily cuts carbon steel, stainless steel, and aluminum sheet/plate
- Uses a water mist technology on aluminum and stainless for superior cut quality
- Ability to cut 20 GA sheet metal up to 2″ thick plate
Thermal Dynamics Ultracut 300 power supply - Burney touch screen controller
- Pronest software for efficient programming times and material usage
- MR 2000 Miller Robotic Arm has 48″ reach in all directions
- Axcess 450 Amp power supply with ability to pulse
- Capable of running up to 1/16″ diameter wire
- Automatically removes slag or dross from plasma cut parts
- Can also be used to grain stainless sheets
- Accepts up to 36″ wide parts
- 12′ long bed
- 5-Axis programmable back gauge
- Ram depth repeatability of +/- .0004″ for accurately formed angles on parts
- Automatic shuttle vise
- Ability to saw 20″ wide X 14″ tall parts
- Ability to saw 40′ long material for better material usage
- Ability to saw 18″ wide X 13″ tall material
- Ability to saw 40′ long material for better material usage
2 Stronghand Tools BuildPro modular jigging tables
Modular jigging tables allow the fabricator to create jigging faster and more accurately for a production run than building a permanent jig that may end up only being used for one production run – in the end saving fabrication time and reducing cost to the customer. It can also be used to fixture custom one off parts accurately and efficiently
- (1) XMT 450 amp MIG welder with 25′ boom
- (1) XMT 304 amp MIG welder with 25′ boom
- (4) 350 P pulsing MIG welders
- (1) Dynasty 200DX pulsing TIG welder
Walter Surfox 104 weld cleaning system
- For cleaning and passivation of stainless welds
- Removes discoloration from welding and keeps weld from rusting
(2) 5 Ton Wirelessly Operated Over Head Shawbox Cranes
Allows for ability to handle large fabrication projects safely and efficiently
Ability to roll 50″ wide X 16 GA sheet
